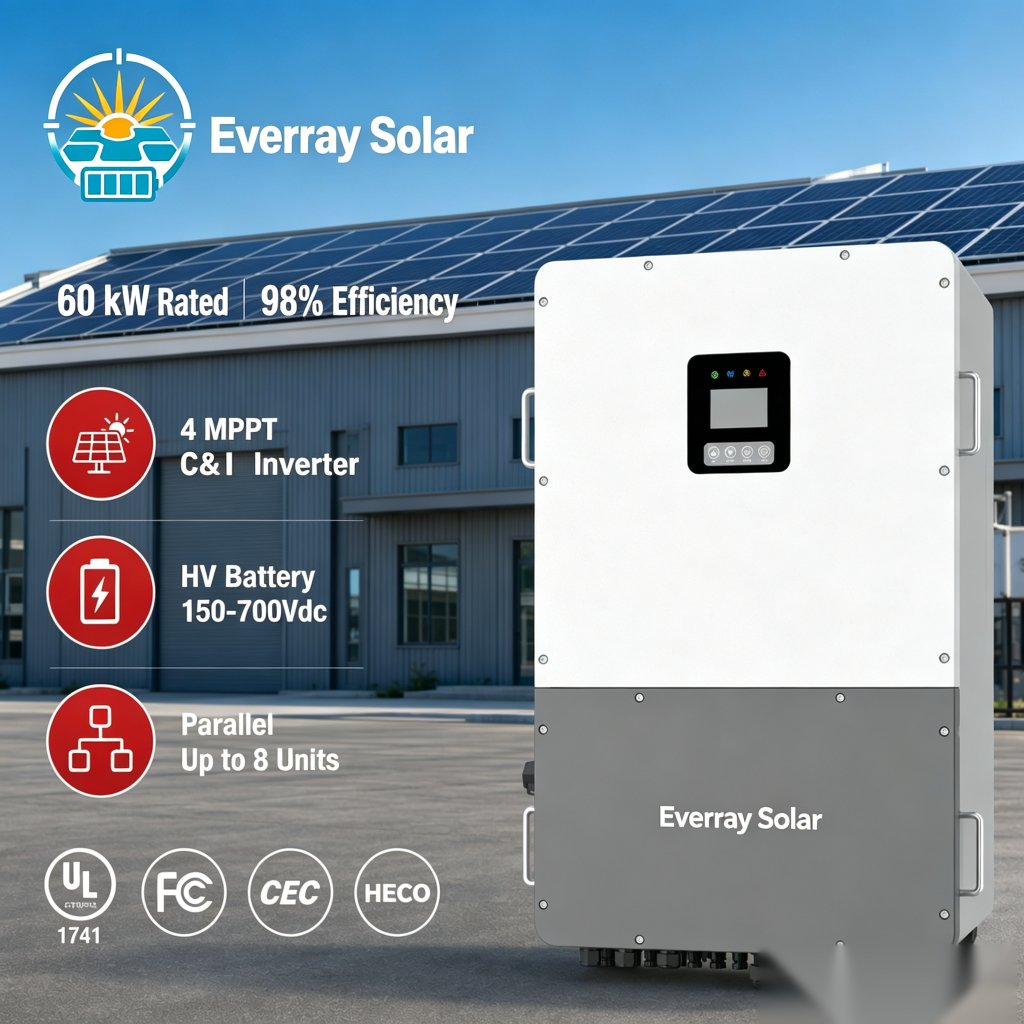

60kW Hybrid Inverter — Three Phase for Commercial & Industrial Projects

Looking for a 60kW hybrid inverter for a factory, commercial building or mini-grid project? EverRay supplies the SSE-HH60K three phase hybrid inverter in both EU and US versions — 60kW of rated three phase output, four MPPT trackers, dual high-voltage battery inputs and an IP66 outdoor enclosure. It is the best-selling model in our commercial inverter range and the natural partner for a 100–500kWh C&I energy storage cabinet. This page covers the full specification, the difference between the EU and North America versions, and how the platform scales from 60kW to 480kW.

---

60kW Hybrid Inverter — Key Specifications

Parameter	SSE-HH60K 60kW Hybrid Inverter
Rated AC output	60kW, three phase
Grid connection (EU version)	380/400V, 3/N/PE
Grid connection (US version)	277/480V or 120/208V
Maximum efficiency	Up to 98.9%
MPPT trackers	4
MPPT voltage window	150–850V
Maximum PV input voltage	1000V DC
Battery type	High-voltage LiFePO4, 150–850V
Battery inputs	Dual inputs, 2×100A charge/discharge (200A total)
Unbalanced output	100% three phase unbalance supported
Generator / retrofit	Diesel generator input, AC coupling to retrofit existing solar
Parallel capability	Up to 8 units in parallel (60kW → 480kW)
Enclosure	IP66, outdoor rated
Warranty	5 years
Certification (EU version)	IEC 62109-1/-2, EN 50549-1, VDE-AR-N 4105
Certification (US version)	UL 1741, FCC Part 15B
Dimensions & weight	Full datasheet with drawings supplied on request

---

What the 60kW Three Phase Hybrid Inverter Delivers

• 60kW of three phase output at 380/400V (EU) or 277/480V and 120/208V (US), with up to 98.9% maximum efficiency.
• Four MPPT trackers with a 150–850V MPPT window and 1000V maximum PV input — so rooftop arrays split across different roof faces and orientations still harvest independently.
• Dual battery inputs with 2×100A charge/discharge (200A total) on high-voltage 150–850V LiFePO4 systems.
• 100% three phase unbalanced output — the inverter carries uneven loads across phases, which matters on real commercial sites where single phase loads are rarely balanced.
• Diesel generator input and AC coupling, so the 60kW inverter can be added to an existing solar installation or to a site with backup generation.
• Parallel up to 8 units — the same model scales a 60kW system to a 480kW plant without switching platforms.
• IP66 outdoor enclosure and a 5-year warranty for rooftop or container-mounted installation.

---

EU Version vs US Version — Which 60kW Inverter Do You Need?

The SSE-HH60K platform ships in two region-specific builds. Both deliver the same 60kW rated output and the same four-MPPT architecture; the grid interface and certification set differ.

	EU Version	US / North America Version
Rated output range	29.9–60kW	30–70kW
Grid voltage	380/400V, 3/N/PE	120/208V and 277/480V
Mixed single / three phase loads	Three phase output	Supported — no separate step-down transformer needed
Certification	IEC 62109-1/-2, EN 50549-1, VDE-AR-N 4105	UL 1741, FCC Part 15B
Typical markets	Europe, Middle East, Africa, Southeast Asia	United States, Canada, Latin America

---

Where a 60kW Hybrid Inverter Is Used

• Factory and workshop rooftop solar with battery backup
• Cold storage, warehouses and logistics centres that cannot lose refrigeration
• Commercial buildings, hotels and hospitals with peak-shaving storage
• Mini-grids and off-grid industrial sites running on generator plus solar
• Fuel stations and EV charging sites that need to buffer fast-charger demand spikes
• Retrofit projects adding storage to an existing grid-tied solar array

---

Scaling from 60kW to 480kW

Because the platform parallels up to eight units on one control scheme, one 60kW inverter can grow with the site instead of being replaced. Most projects start with a single unit and add capacity as load grows.

Units in parallel	Total AC output	Typical fit
1 unit	60kW	Factory rooftop, single commercial building
2 units	120kW	Large factory, small mini-grid
4 units	240kW	Industrial park, cold storage campus
8 units	480kW	Plant-scale commercial and industrial system

For loads above 480kW, our 80–150kW three phase hybrid inverter series covers a single-unit 100kW or 150kW installation. Tell us your load profile and we will recommend the cheaper of the two routes.

---

Pair the 60kW Inverter with C&I Energy Storage

A 60kW hybrid inverter is normally the front end of a larger storage system. Matched with a 100–500kWh battery cabinet it becomes a complete commercial and industrial solution delivering demand charge reduction, solar firming and backup power with sub-20 ms switchover.

EverRay supplies the battery side from the same catalogue: 100–500kWh commercial and industrial energy storage systems, the 261kWh energy storage cabinet, liquid-cooled cabinets and containerized BESS up to 1.72 MWh. For high-voltage racks behind the inverter, see our LiFePO4 battery range. Sizing the inverter, battery bank and PV array together from one supplier means the three parts are tested to work as one system and ship in a single container.

---

Why Buy the 60kW Hybrid Inverter from EverRay

• Matched system supply — inverter, high-voltage batteries, PV modules and mounting from one source, quoted as one working system.
• Free system sizing — send your load list and grid standard and our engineers size the inverter, battery bank and array before you commit.
• Pre-shipment testing — every batch function-tested before loading, with test records on request.
• Mixed container loading — combine the 60kW inverter with modules, batteries and cleaning equipment to cut freight cost per unit.
• Export documentation and DDP shipping handled for containerized and rack systems.
• Field-proven — three phase C&I inverters deployed across Europe, the Middle East, Africa, Latin America and Southeast Asia.

---

Frequently Asked Questions

What is a 60kW hybrid inverter used for?

It is the front end of a commercial or industrial solar-plus-storage system: factories, cold storage, warehouses, hotels, hospitals and mini-grids. The 60kW rating sits at the point where a site outgrows single phase equipment but does not yet need a 100kW+ unit, and it covers peak shaving, solar firming, backup power and generator-plus-solar hybrid operation.

How much PV can I connect to a 60kW hybrid inverter?

The inverter has four MPPT trackers with a 150–850V operating window and a 1000V maximum DC input, so the array can be split across roof faces without losing harvest. The exact kilowatt-peak of the array depends on your irradiance and tilt — send us your site location and roof layout and we will size the string design for free.

What battery does the 60kW hybrid inverter use?

High-voltage LiFePO4 battery systems from 150V to 850V, connected through dual battery inputs rated 2×100A (200A total charge/discharge). It pairs directly with our high-voltage rack and cabinet products, so the inverter and battery come from one supplier and one warranty chain.

Is the 60kW hybrid inverter certified for the US market?

Yes. The US-standard series covers 30–70kW at 120/208V and 277/480V, certified to UL 1741 and FCC Part 15B, and it supports mixed single and three phase loads — so a 60kW inverter can serve a US commercial site without a separate step-down transformer. The EU series is certified to IEC 62109, EN 50549-1 and VDE-AR-N 4105.

Can I parallel several 60kW inverters to get more power?

Yes. The platform supports up to eight units in parallel, scaling one 60kW hybrid inverter to 480kW. Because the units share one control scheme, you can start with a single 60kW unit and add capacity later without replacing the original installation.

Can the 60kW hybrid inverter run off-grid or with a diesel generator?

Yes. It operates in off-grid, on-grid and hybrid modes with automatic switchover, accepts diesel generator input, and supports AC coupling so it can be retrofitted onto an existing solar array that is already grid-tied.

What is the MOQ and lead time for the 60kW hybrid inverter?

MOQ is flexible for new partners and sample orders are welcome. Typical lead time is 2–4 weeks depending on quantity and whether the order is combined with battery cabinets or PV modules in the same container.

Can you supply the battery storage cabinet as well?

Yes. We quote the 60kW inverter together with 100–500kWh C&I energy storage cabinets, high-voltage LiFePO4 racks and containerized BESS, and we size all three parts as one system. See commercial and industrial energy storage systems for the battery side of the package.

---

Get Your 60kW Hybrid Inverter Quotation in 24 Hours

Tell us your load profile, grid voltage and battery preference — our engineers will size the 60kW hybrid inverter, battery bank and PV array and send a formal quotation within one business day.

📱 WhatsApp / Phone: +86 183 5694 3951  |  📧 Email: info@everraysolar.com  |  Or send your project brief through our contact form and we will reply within 24 hours.

Looking for a different rating? Compare the whole range on our hybrid inverter product page — 2–12kW single phase, split phase 120/240V for the Americas, and 30–150kW three phase for larger commercial projects.
